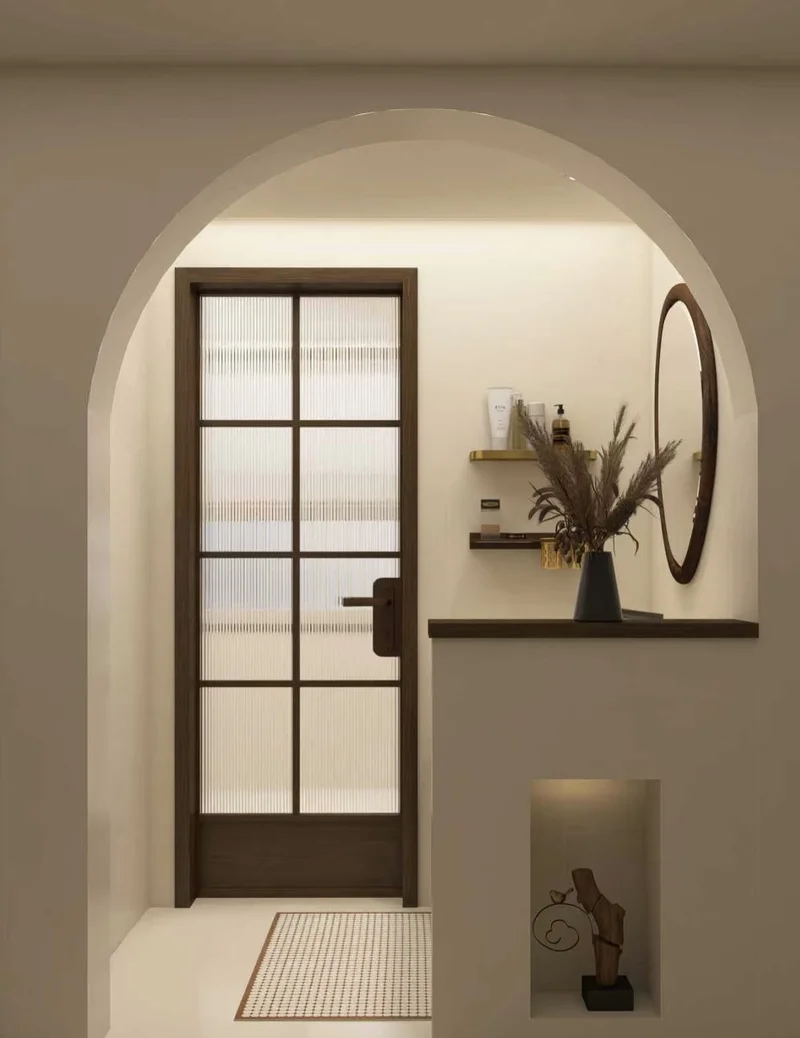

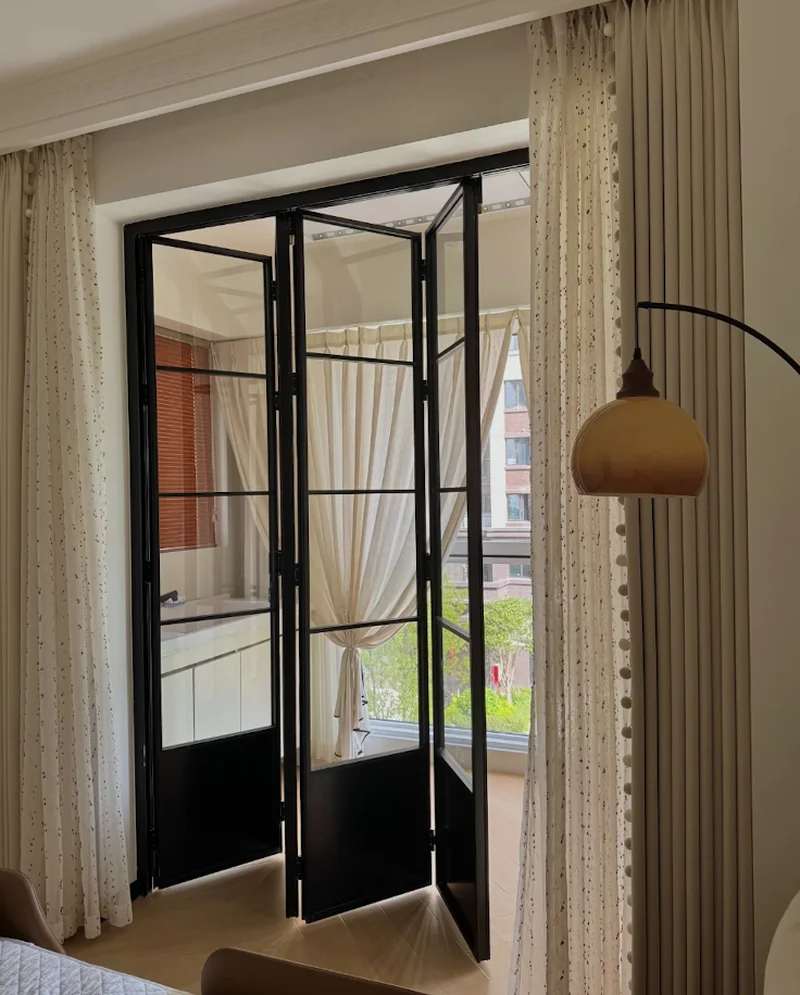

Aluminum glass doors for hotel corridors

First impressions are the currency of hospitality, and the journey begins long before a guest reaches their room. In the modern hotel, the corridor is not merely a passage but a prelude—a carefully curated space that sets the tone for comfort and luxury. At the heart of this design philosophy lies the humble yet transformative element: the aluminum glass door. These fixtures have evolved far beyond their utilitarian roots, marrying the strength and corrosion resistance of aluminum with the airy transparency of glass. The result is a seamless blend of durability and elegance that defines contemporary corridor architecture. By maximizing natural light and creating an illusion of spaciousness, these doors eliminate the claustrophobic feel of traditional hallways, while their robust frames ensure lasting performance against high-traffic wear. For hoteliers, they represent a strategic investment in both aesthetic appeal and operational efficiency. More than an entryway, the aluminum glass door becomes a silent ambassador of the hotel’s commitment to enlightened design.

Elevate Guest Impressions with Sleek, Modern Aluminum Glass Doors

Elevate Guest Impressions with Sleek, Modern Aluminum Glass Doors

Aluminum glass doors in hotel corridors serve as the first tactile and visual touchpoint for guests moving between public areas and private rooms. Material selection directly impacts perceived quality, acoustic privacy, and long-term operational durability. The following technical parameters define a specification-grade corridor door system.

• Frame Construction: Extruded 6063-T5 aluminum alloy with anodic oxidation (≥15 μm thickness) or powder coating (60–80 μm) per EN 12206. Minimum wall thickness: 2.0 mm for framed systems, 3.0 mm for structural silicone glazed units. Thermal break polyamide strips (25–34 mm width) achieve U-factor ≤ 2.8 W/m²K in accordance with EN ISO 10077.

• Glass Specifications:

  • Tempered safety glass to EN 12150-2 (minimum 6 mm) for impact resistance in high-traffic corridors.
  • Laminated inner pane with 0.76 mm PVB interlayer (acoustic grade) to achieve weighted sound reduction index Rw up to 42 dB per EN ISO 717-1. STC ratings certified per ASTM E413.
  • Solar control low-E coating (g-value ≤ 0.35) optional for corridor ends exposed to direct sunlight.

• Acoustic Performance: Doors achieve composite Rw 38–44 dB depending on glass build (6/12/6.2 laminated). Perimeter seals: dual-fin silicone wiper gaskets (shore 70A) at stile/header, drop-leaf threshold with compression gasket at bottom. Tested per ASTM E90 to ensure < 10% leakage on standard corridor pressure differentials.

• Fire & Safety Compliance: 30-minute fire rating (EI30) achievable using intumescent interlayer glass (≤ 120 min per EN 1634-1). Self-closing hydraulic hinges with 180° opening stop. Panic exit hardware certified to EN 179 (fire escape) and EN 1125 (anti-panic). Compliance with local building codes and ASTM E119 for hotels above 3 stories.

• Hardware & Corrosion Resistance: stainless steel hinges (grade 304, 1.2 mm thick) and aluminum push/pull handles with 1000-hour salt spray resistance per ASTM B117. Magnetic lock strikes and concealed door closers standard for silent operation in quiet hours.

• Thermal & Moisture Control: Frame condensation resistance factor CRF ≥ 65 per NFRC 500. Low thermal surface conductivity prevents moisture pooling on corridor side surfaces. No moisture absorption in frame components – swelled rate < 0.2% after 24-hour immersion in accordance with ISO 10545.



Table: Typical Glass Configuration Performance Data

All assemblies comply with ISO 9001:2015 manufacturing standards and E0 formaldehyde emission limits (< 0.124 mg/m³) for any wood or composite inserts. Hardware finishes match LEED v6 and WELL v2 requirements for low-VOC content (≤ 100 g/L). For architects specifying guest impression without compromising corridor safety and durability, these material choices deliver measurable performance across acoustic privacy, thermal comfort, and daily wear resistance.

Built to Last: High-Traffic Durability and Structural Integrity

Frame and Core Engineering

The structural backbone of high-traffic corridor doors relies on extruded aluminum alloy 6063-T5 or 6061-T6, yielding a minimum tensile strength of 205 MPa. Thermal breaks use polyamide 6.6 reinforced with 25% glass fiber, maintaining U-factor ≤ 1.8 W/m²K per EN 12412-2.

• Load-bearing cycles: Tested to 200,000 open/close cycles under EN 1191, with zero measurable sag or hinge deformation.
• Core reinforcement: Where composite panels are integrated (e.g., for fire-rated doors), LVL (Laminated Veneer Lumber) cores with density ≥ 680 kg/m³ and horizontal grain orientation eliminate long-term warping. WPC inserts, when specified, require a PVC‑wood ratio of 60:40 to balance impact resistance (Charpy ≥ 12 kJ/m²) with moisture swelling ≤ 0.8% after 24 h immersion (EN 317).
• Glass retention: 6 mm minimum tempered glass with PVB interlayer (0.76 mm for sound, 1.52 mm for forced entry) is mechanically clamped using EPDM gaskets (Shore A 65±5) and stainless steel pressure plates, achieving lateral load resistance of 800 Pa per ASTM E330.

Fire & Acoustic Performance

All assemblies comply with EN 1634-1 for 30-minute integrity (E30) and, with intumescent seals, up to 60 minutes (EI60). ASTM E119 ratings extend to 90-minute thermal barrier when using ceramic glazing inserts.

Material Stability & Longevity

• Moisture absorption for door panels: < 0.5% after 72 h at 90% RH (ASTM D570), preventing edge swell or delamination even in corridor zones exposed to cleaning chemicals and humidity from adjacent bathrooms.
• Speed of sound damping: A 45° mitred aluminum frame with foam‑filled chambers reduces vibration propagation, maintaining consistent latching force after 50,000 slams.
• ISO 9001:2015 certified production lines for all extrusions, welds, and sealant application; each door is laser‑measured for diagonal tolerance ≤ 1.0 mm in 2400 mm height.

Every component—from the 304 stainless steel hinge pins (R_z ≤ 1.6 μm) to the A2‑70 plated screws—is selected to withstand continuous traffic without cosmetic degradation or structural creep.

Quiet Comfort: Advanced Sound Insulation for Peaceful Corridors

Quiet Comfort: Advanced Sound Insulation for Peaceful Corridors

The acoustic performance of hotel corridor doors is governed by the combination of glass composition, frame geometry, and seal integrity. The aluminium-glass door assembly reduces airborne noise transmission through three mechanisms: mass-air-mass resonance damping, edge damping via compliant seals, and decoupling of the structural frame from the partition.

• Laminated Acoustic Glass – Standard configuration uses 6 mm tempered / 1.52 mm PVB acoustic interlayer / 6 mm tempered. The PVB interlayer provides viscoelastic damping across the 500–4000 Hz speech-frequency range, achieving an Rw (weighted sound reduction index) of 36–38 dB per ISO 717-1. For higher corridor-to-room isolation, specify 8 mm + 1.52 mm + 8 mm asymmetric laminate: Rw reaches 42 dB.
• Triple-Seal Perimeter System – Two EPDM bulb gaskets on the door leaf periphery plus a drop-down bottom brush seal (nylon filament with EPDM base) maintain continuous contact pressure. The air leakage rate at 50 Pa (EN 1026) stays below 0.5 m³/h/m², critical for preserving the acoustic envelope. Compression stops are set at 3–4 mm engagement to avoid frame vibration transfer.
• Thermally Broken Frame Profile – The aluminium extrusion incorporates a 34 mm polyamide strut (glass-fibre reinforced, 25% GF) separating interior and exterior chambers. This reduces structural flanking transmission at low frequencies (100–315 Hz) by 5–7 dB compared to monolithic profiles. The frame’s overall surface weight exceeds 16 kg/m², contributing to mass-law attenuation.
• Acoustic Performance Data (tested per ASTM E413 and E90)

• Moisture and Seal Durability – Silicone primary weather seal (with tubular cross-section) exhibits compression set <20% after 70 h at 100°C (per ISO 815). The door bottom brush seal resists water absorption ≤3% by weight after 24 h immersion (EN 60734). Frame drainage channels are fitted with acoustic baffle vents (STC 30-rated) to prevent rain ingress without compromising sound reduction.
• Thermal Bridging Control – The thermally broken frame reduces the U-value of the door assembly to ≤2.8 W/m²K (standard) or ≤1.8 W/m²K (double-glazed option). For corridors with exterior exposure, the combination of low-e coating on face 2 (ε=0.04) and argon fill (90% Ar) in the double-glazed version achieves a U-value of 1.6 W/m²K, compliant with EN 10077.

All doors meet fire resistance criteria per EN 1634-1 (EI 30) when specified with intumescent seals (80 mm placement from edge). The acoustic performance is validated for use in ISO 9001:2015 certified production lines, and glass components carry E0 formaldehyde emission certification (≤0.05 mg/m³).

Safety First: Impact-Resistant and Fire-Rated Options for Hotels

Safety First: Impact-Resistant and Fire-Rated Options for Hotels

• Glass construction: Specified configurations combine tempered (EN 12150) and laminated glass (EN 12543) to achieve impact classes 1B1 through 3B3 per EN 12600. For high-traffic corridor applications, minimum 6 mm tempered + 0.76 mm PVB interlayer + 6 mm tempered is recommended. Laminated interlayers retain fragments on impact, reducing injury risk and maintaining door integrity after collision.
• Aluminum framing: Extruded 6063-T6 alloy profiles (minimum wall thickness 2.0 mm) with fused-together corner joints (not mechanical fasteners) provide consistent structural resistance. Corner welds are tested to EN 13123-1 for static load and cyclic load endurance.
• Fire-rated glazing: For corridors serving as smoke-control or escape routes, use tested assemblies meeting EN 1634-1 (equivalent to BS 476:22) or ASTM E119 (for North America). Standard ratings include EI30 (30 min integrity + insulation), EI60, and EI90. Glass compositions typically use low-e coated, borosilicate, or ceramic-filled intumescent laminates that maintain visibility while containing flame and limiting heat transfer.
• Intumescent seals: Edge seals within the frame expand at 150–200 °C, blocking gaps that would otherwise allow smoke passage. Verify that seal material is ATF/BS 476:20 compliant and that the frame includes a continuous, bonded seal channel.
• Impact-fire dual ratings: Not all impact-resistant glazing is fire-rated. Specify products tested to both EN 12600 (impact) and EN 1634-1 (fire). The table below shows common combinations:

• Acoustic performance parallel to fire safety: Laminated glass with higher PVB mass and thicker interlayers also improves weighted sound reduction (Rw) by 4–6 dB over monolithic glass. For corridors adjacent to guest rooms, a 1.52 mm PVB interlayer yields Rw 36–38 dB, aiding noise control without sacrificing fire or impact properties.
• Thermal break in fire-rated frames: Standard thermal-break polyamide strips reduce internal condensation but may degrade above 250 °C. For fire-rated systems, use reinforced stainless-steel thermal breaks or specify that the break is encapsulated within the frame profile to maintain structural stability during fire exposure.
• Testing documentation: Every system must be supplied with a third-party test report (Warrington, Exova, or UL) listing door dimensions, hardware, glass stack, and frame material. Architects should request site-specific conformance letters per ISO 9001:2015 for traceability.
• Maintenance of impact/fire performance: Hinges, locks, and closers must be fire-rated to EN 179 or EN 1125 as required by local codes. Use corrosion-resistant stainless-steel or galvanized components. Periodic inspection of intumescent seals (free of paint, debris) and glass edge condition is necessary to retain certification.

Effortless Maintenance: Why Hoteliers Trust Aluminum Glass Doors

Effortless Maintenance: Why Hoteliers Trust Aluminum Glass Doors

Hotel corridor doors sustain 500–2,000 cycles per day—trolley impacts, chemical wipes, humidity fluctuations. Aluminum glass systems are specified specifically to reduce housekeeping labor and hardware replacement intervals.

• Frame surface endurance: Extruded 6063-T5 alloy (ASTM B221, ISO 7599) with anodized finish at 20 µm thickness delivers hardness >200 HV, resisting scuffs from luggage carts. Powder coatings per AAMA 2604.3 achieve impact resistance of 80 in·lb (ASTM D2794) and 5 year Florida UV exposure rating—eliminating repainting or touch-up.
• Glass maintenance: Tempered panels (EN 12150) with pyrolytic coatings prevent grime adhesion; cleaning requires only neutral detergents. For higher impact zones, laminated glass (EN 14449) maintains integrity even if the interlayer is exposed—no immediate glass replacement needed after incidental breakage.
• Hardware gremlin prevention: Continuous hinges with stainless steel pins (AISI 304) and self-lubricating POM bushings pass 1 million cycles without lubrication. Cam-action mortise locks (EN 1125 panic-rated) remain reliable with simple annual pivot greasing; spring cassettes in floor springs rated to 400 Nm (EN 1154) require no fluid refill for 10 years.
• Seal & weatherstrip durability: EPDM gaskets (ASTM D2000) retain Shore A hardness of 70±5 after 500,000 compression cycles. Dual magnetic seals maintain closure force of 8–12 N, requiring only periodic wiping of the magnetic strip. Drop-bottom seals with silicone blades self-adjust to floor tolerances, eliminating manual replacement.
• Thermal & condensation control: Pour-and-debridge polyamide 6.6 thermal breaks (25% glass fiber) achieve U‑factor <3.0 W/m²K per EN ISO 10077. This prevents condensation on frames at 50% RH and 20 °C interior, removing water-mark cleaning from daily tasks.
• Fire-rated variants: Intumescent strips in 20-, 45-, and 60‑minute assemblies (ASTM E119, BS 476 Part 22) require only visual inspection of seal integrity. No periodic replacement unless damaged—strips activate at 150 °C and maintain adhesion after aging cycles (EN 1634-1).

Anodized finishes are typically specified for high-traffic hotel corridors where cleaning agents include alkaline detergents. Powder coatings remain suitable for decorative accents with lower chemical exposure.

Acoustic foam inserts in frame profiles combine with the above seals to achieve field‑tested STC 35–40 (ASTM E413). The acoustic dangle seal, replacing traditional sweeps, reduces annual replacement from every 6 months to once every 5 years—direct labor savings.

Material choices are corroborated by ISO 9001:2015-certified production lines with incoming QC on aluminum billet hardness (Brinell HB 80±5) and glass edgework polish (according to EN 12488). These parameters ensure predictable in-field performance without surprise degradation.

Frequently Asked Questions

What moisture expansion and warping prevention features are engineered into these doors for humid hotel corridors?

The aluminum frame provides inherent moisture resistance, while the core – if WPC – uses high-density (≥600 kg/m³) boards with hydrophobic additives and a PVC coating thickness of ≥0.3 mm. This assembly limits linear expansion to <0.2%, preventing warping even in 95% RH environments.

How do these doors meet strict formaldehyde emission standards (E0/EN) for indoor air quality?

Our WPC infills are manufactured with MDI (methylene diphenyl diisocyanate) resin, achieving formaldehyde emissions below 0.005 mg/m³ (EN 717-1), surpassing E0 class. All adhesives and sealants used in the aluminum-glass assembly are solvent-free, certified under EN 13986 for low-VOC contribution.

What thermal insulation performance is specified for energy savings in hotel corridors?

The aluminum thermal break profile – ≥24 mm wide with polyamide PA66 strips – combined with a double-glazed low-E glass unit (U-value ≤1.4 W/m²K) reduces heat loss. Optional WPC core with closed-cell structure further lowers overall frame U-value by 15%, minimizing corridor-to-room temperature transfer.

How is impact resistance ensured to withstand luggage trolleys and high traffic?

Tempered glass (≥6 mm) with EN 12600 class 1B1 rating, plus an aluminum frame using 2.0 mm thick extruded sections reinforced with LVL (laminated veneer lumber) core inserts at hinge zones. This achieves a static load capacity >800 N without deformation, tested against CEN/TS 1627 for heavy-duty cycles.

What sound insulation levels are achieved for guest privacy in corridor doors?

Standard configuration yields Rw ≥38 dB (ASTM E413) using 5+12+5 mm laminated glass and aluminum frame with acoustic gasket compression of >30 N/m. Optional upgrade with WPC composite panel (density 700 kg/m³) in the lower half can increase low-frequency damping by 3 dB.

How is long-term structural warping prevented in aluminum-glass door systems over 10+ years?

Aluminum profiles undergo T5 tempering (190 MPa yield strength) and are CNC-machined to tolerances ±0.2 mm. The glass is edge-polished and embedded with structural silicone, while frame-to-wall anchors are stainless steel grade 304. No wood-based organic components, eliminating natural distortion in variable climates.

What UV-resistant finishing processes maintain appearance in sun-exposed corridor entrances?

The aluminum surface receives 60-80 μm polyester powder coating (Qualicoat Class 1), tested for >500 hours salt spray (ASTM B117) and >2000 hours QUV-B (ISO 16474). For glass, a ceramic frit enamel with UV-blocking additive reduces fading of adjacent wall finishes by 95%.
