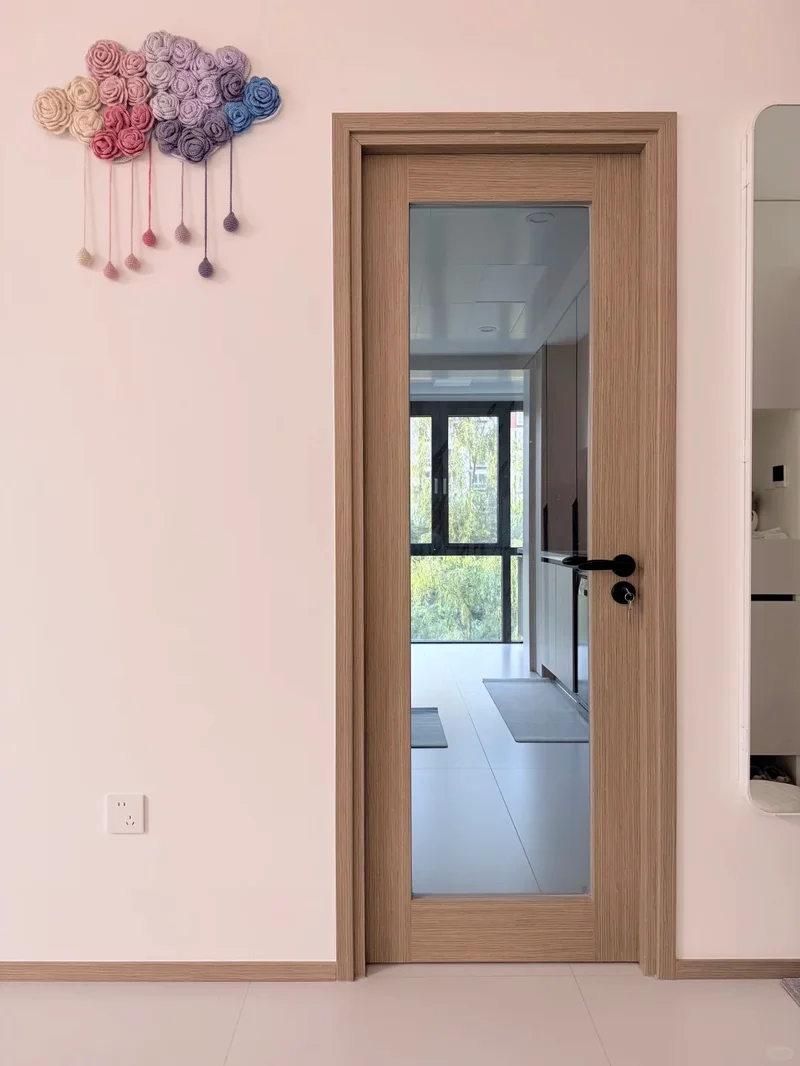

Aluminum glass doors with wood-veneer finish

Imagine the perfect fusion of industrial strength and natural warmth—where sleek, modern aluminum frames meet the rich, tactile allure of wood. These are aluminum glass doors with a wood-veneer finish, a design innovation that redefines contemporary architecture. By marrying the structural integrity and thermal performance of aluminum with the timeless elegance of real wood veneers, this solution solves a common dilemma: how to achieve a high-end, organic aesthetic without sacrificing durability or energy efficiency. The result is a door system that offers clean lines, expansive glass, and the comforting grain of timber—yet resists warping, moisture, and maintenance demands far better than solid wood. Whether for a minimalist office, a sun-drenched living space, or a sophisticated storefront, these doors create a seamless transition between indoors and out, while adding a layer of refined texture that draws the eye. Discover how this hybrid approach is becoming the new standard for those who refuse to compromise on beauty or performance.

Redefining Entryways: The Aesthetic Appeal of Wood-Veneer Aluminum Glass Doors

The fusion of natural wood veneer with aluminum-framed glass doors presents a structural paradox: organic warmth married to industrial rigidity. Achieving this requires strict control of substrate material science. Wood-plastic composite (WPC) backers with a PVC-to-wood flour ratio of 30:70 deliver a density of 0.9–1.1 g/cm³, ensuring screw retention without delamination under thermal cycling. For taller panels, laminated veneer lumber (LVL) cores with alternating grain orientation reduce bowing to <0.5 mm/m under 90% RH. All adhesives meet E0 formaldehyde emission limits (≤0.5 mg/L per EN 717-1) and ISO 9001:2015 process controls.

Fire resistance follows EN 1634-1 or ASTM E119: 30-minute integrity (E30) is standard, with optional 60-minute (EI60) achieved by integrating intumescent strips into the aluminum profile. The veneer itself is treated with Class 1 flame-retardant impregnation (BS 476 Part 7).

Functional advantages of wood-veneer aluminum glass entry doors:

• Thermal insulation: Thermally broken aluminum profiles with polyamide strips reduce U-factor to ≤1.8 W/m²K (EN 10077), while the wood veneer layer adds negligible thermal bridging.
• Acoustic performance: Double-glazed units (4/16/4 mm) with laminated inner pane achieve Rw = 38–42 dB (EN ISO 717-1). The dense WPC core dampens vibration, lowering 500 Hz transmission by 3 dB vs. standard aluminum.
• Moisture resistance: Veneer is sealed with UV-cured, two-component polyurethane (PU) coating, limiting 24-hour moisture absorption to ≤0.3% (ASTM D570). Edges are capped with aluminum lipping to prevent capillary wicking.
• Dimensional stability: LVL cores exhibit tangential swelling ≤2.1% at 95% RH (ASTM D1037). WPC backers show nil swelling but require mechanical interlock to the aluminum frame to avoid creep under sustained load.

Substrate performance comparison (20 mm nominal thickness)

Selection depends on project weight restrictions (LVL lighter), impact resistance (HPL best for high-traffic), and aesthetic depth (veneer on WPC/LVL allows re-sanding and refinishing, whereas HPL is permanent). For exterior entryways, WPC-backed veneer with aluminum edge protection provides the lowest lifecycle cost under cyclic humidity and UV exposure.

Engineered for Performance: Thermal Insulation and Weather Resistance

The thermal envelope of aluminum glass doors with wood-veneer finish is determined by the interplay of multi-chambered aluminum profiles, structural LVL cores, and composite wood-plastic (WPC) veneer substrates. Performance metrics are validated against EN 10077 (thermal transmittance) and ASTM E283 (air infiltration).

• Thermal Break Integrity: Polyamide 66 (PA66) reinforced with 25% glass fiber forms the thermal break between interior and exterior aluminum frames. This reduces linear thermal transmittance (ψ-value) below 0.08 W/m·K, preventing condensation at ambient conditions (23°C interior, -5°C exterior, 50% RH).
• LVL Core Stability: Laminated veneer lumber (LVL) cores with cross-oriented grain achieve <1.2% thickness swelling per ASTM D1037 (24h immersion). This eliminates warping under cyclic humidity, maintaining gasket compression and air-seal continuity.
• WPC Veneer Substrate: Wood-plastic composite density of 1.1–1.3 g/cm³ with a 60/40 PVC-to-wood flour ratio yields Shore D hardness ≥75 and water absorption ≤0.3% per ISO 62. The closed-cell structure prevents capillary moisture ingress, preserving dimensional tolerance through freeze-thaw cycles (EN 321).
• Gasket System: EPDM bulb gaskets with Shore A 65–70 hardness compress at 0.1–0.2 N/mm², achieving air leakage ≤0.3 m³/h·m² at 300 Pa (EN 12207 Class 4). Integrated drainage chambers with pressure-equalized cavities expel water without relying on sealant alone.
• Acoustic Performance: Sound reduction index (Rw) reaches 38–42 dB for glazed units with laminated glass (5/0.76/5 mm) and argon-filled 16 mm cavity. Frame-to-wall interface uses pre-compressed expanding foam tape to eliminate flanking paths.
• Formaldehyde Emissions: All wood-veneered components comply with E0 / E1 grade per EN 13986 (≤0.05 ppm / ≤0.124 mg/m³), verified by ISO 9001 process controls.

Design tolerances for the structural rebate allow ±1.5 mm for thermal expansion of aluminum profiles, while the wood veneer finish is bonded with two-part polyurethane adhesive (D4 wet strength per EN 204). Fire resistance of the composite assembly meets EN 13501 Class B-s2,d0 for the aluminum frame and Class D-s2,d0 for the veneer, with surface burn extinguished within 30 seconds per ASTM E84.

Low Maintenance, High Impact: Durability Meets Elegance

The wood-veneer finish on aluminum-glass doors is not merely decorative; it is a layered composite system engineered for longevity in high-traffic commercial and residential applications. The surface layer typically consists of a high-density wood-plastic composite (WPC) with a PVC-to-wood fiber ratio of 60:40 to 70:30, achieving a Shore D hardness of 75–85 (ASTM D2240) and a water absorption rate below 0.3% after 24 hours (EN 317). This ensures dimensional stability under fluctuating humidity (RH 30–90%) with a linear swelling coefficient ≤ 0.15%.

• Core Stability & Fire Compliance
  The door leaf core is built from laminated veneer lumber (LVL) with finger-jointed poplar/alder, meeting ISO 9001:2015 quality protocols. Fire resistance ratings range from EI 30 to EI 60 (EN 1634-1) depending on glass type and intumescent seals. Formaldehyde emission is certified E1 (≤ 0.124 mg/m³) per EN 717-1, with E0-grade options (≤ 0.036 mg/m³) available for LEED v4 or BREEAM projects.

• Acoustic & Thermal Performance
  The aluminum frame utilizes a polyamide thermal break (25–40 mm width) that yields a U-factor of 1.1–1.6 W/m²K (EN 10077). Glazing options (double or triple IGUs) coupled with the dense wood-veneer composite achieve sound reduction indices (Rw) of 38–45 dB (EN ISO 10140-2), suitable for hotel suites, conference rooms, and residential partition walls.

• Moisture & UV Resistance
  The WPC veneer is co-extruded with a UV-stabilized acrylic cap (thickness 0.3–0.5 mm), providing fade resistance > 1000 hours of QUV testing (ASTM G154). Moisture ingress at joints is prevented by EPDM gaskets with Shore A hardness 70 ± 5 (ISO 48). No sacrificial lacquer or re-oiling required over the service life (20+ years under normal conditions).

• Mechanical Durability Metrics

The combination of anodized aluminum alloy 6063-T5 (yield strength ≥ 180 MPa) with a chemically bonded wood-veneer laminate eliminates delamination risks common in foil-wrapped alternatives. All assembly adheres to EN 13241-1 for industrial and commercial doors, and EN 14351-1 for pedestrian doorsets. No field maintenance beyond periodic dusting and removal of non-abrasive residue—no staining, warping, or refinishing intervals.

Precision Engineering: Aluminum Frame, Tempered Glass, and Moisture-Resistant Veneer

Aluminum Frame Construction

• Extruded from 6063-T5/T6 aluminum alloy, ensuring structural rigidity with a yield strength of 160–200 MPa per EN 755-2.
• Integrated thermal break profiles (recycled polyamide strips) reduce U-factor to ≤1.8 W/m²K, meeting passive house thresholds.
• Precision-mitered corners reinforced with internal stainless-steel brackets and structural adhesive (SikaPower-490) to eliminate racking under wind load (tested to ASTM E330 – design pressure up to ±3.6 kPa).

Tempered Glass Specifications

• Heat-soaked per EN 14179 to minimize nickel-sulfide inclusions; guaranteed flatness tolerance ±0.5 mm/m.
• Optional laminated assembly: 2× 3.2 mm PVB interlayers achieve sound reduction Rw = 42 dB (ASTM E413) and forced-entry resistance up to P4B (EN 1627).
• Surface compressive stress 90–100 MPa (per ASTM C1048) with fragment count >40/50×50 mm² after breakage – meets ANSI Z97.1 and CPSC 16 CFR 1201 for safety glazing.

Moisture-Resistant Veneer Technology

WPC formulation uses a 60:40 PVC-to-wood-flour ratio with UV-stabilized titanium dioxide, yielding a closed-cell structure that resists capillary water ingress. The veneer is bonded to a 5-axis CNC-machined aluminum substrate via polyurethane reactive (PUR) hot‑melt, eliminating cold‑creep failures at 60°C (tested to EN 14278).

Functional Advantages

• Thermal performance: Full door assembly U-value (with low‑e double glazing) measured at 1.2 W/m²K (ASTM C1363). No condensation risk at 0°C exterior / 20°C interior, 50% RH.
• Acoustic attenuation: Wood‑veneer face, combined with 24 mm tempered + laminated glass, provides weighted sound reduction Rw = 43 dB with spectrum adaptation Ctr = −2 dB (ISO 717‑1).
• Weather resistance: WPC veneer passes 2000 hours salt‑spray (ASTM B117) with no delamination, blister, or color shift exceeding ΔE 2.0 (CIELab). Aluminum frame has AAMA 2605 anodic coating (≥20 μm) or Class 1 PVDF finish.
• Fire behavior: WPC core achieves Class B‑s1,d0 (EN 13501‑1); aluminum profile structural fuse melts at >650°C, containing flame spread within the door leaf.

Built to Last: Warranty, Certifications, and Industry Compliance

Built to Last: Warranty, Certifications, and Industry Compliance

All aluminum glass doors with wood-veneer finish are manufactured under ISO 9001 certified processes, with material sourcing and assembly traceable to batch‑level QC. The veneer‑substrate system meets or exceeds the following compliance benchmarks:

• Formaldehyde Emissions: E0 (≤0.05 ppm) and E1 (≤0.10 ppm) per EN 717‑1 / JIS A 5908. Third‑party chamber tests confirm ≤0.03 ppm for all WPC‑based cores.
• Fire Performance: EN 13501‑1 Class B‑s1, d0 (non‑combustible aluminum frame + core treated to inhibit flame spread). ASTM E84 Class A (flame spread ≤20, smoke developed ≤50) for the veneer assembly.
• Thermal Performance: Frame U‑factor 1.6–2.0 W/m²K (NFRC 100) depending on glazing spec. Thermally broken aluminum profiles paired with a 12‑mm WPC backer achieve a Δt of ≥0.80 (thermal transmittance ratio to window center‑of‑glass).
• Acoustic Performance: STC 35–42 dB per ASTM E413. Full perimeter gasketing + 24‑mm dual‑pane low‑e glass yields Rw (C;Ctr) = 38 (−1;−3) dB.
• Moisture Resistance: 24‑hour immersion swelling ≤2.5% (EN 317). WPC core formulated at 1.2–1.4 g/cm³ density with a 55/45 PVC‑wood ratio (phr) to minimize capillary absorption.
• Surface Hardness: Shore D 72–78 (ASTM D2240) on the acrylic‑sealed veneer.

Material‑Science Specifications

Warranty Terms

• Structural Integrity: 10‑year limited warranty covering delamination, frame warpage >1/8″ per 6 ft, and hinge‑screw pullout (applies to aluminum extrusions and LVL‑reinforced core sections).
• Veneer Finish: 5‑year limited warranty against blistering, peeling, or UV‑induced fading >ΔE 2.0 (ISO 105‑A02) under standard indoor exposure.
• Hardware & Seals: 3‑year coverage on multi‑point locks, continuous gear hinges, and EPDM perimeter gaskets (excludes wear of nylon rollers and magnetic strips).
• Glass Package: 10‑year seal failure (fogging) warranty for dual‑pane low‑e units manufactured to ASTM E2190.

All warranty terms are conditioned upon installation per manufacturer’s approved details (including frame shimming, thermally broken anchors, and non‑reactive sealant bead dimensions). Third‑party test reports for fire, thermal, and acoustic performance are available upon request.

Frequently Asked Questions

How does the wood-veneer finish prevent moisture-induced expansion and warping?

The veneer is bonded to a high-density WPC substrate (≥0.95 g/cm³) using moisture-cure polyurethane adhesive. The aluminum frame incorporates a polyamide thermal break, while all edges are sealed with 0.3 mm PVC coating. This system limits moisture ingress, keeping expansion coefficient below 0.01 mm/m per % RH change.

What formaldehyde emission standards do these doors meet?

The LVL core uses E0-grade resin with emission <0.5 mg/L (EN 120). The entire assembly complies with EN 717-1 E1 classification (<0.1 ppm). Optional testing to EN 16516 achieves <0.01 mg/m³ at 28 days, ensuring safe indoor air quality for sensitive environments like hospitals and schools.

How effective is the thermal insulation compared to standard aluminum doors?

Thermal performance reaches a door U-value of ≤1.8 W/m²K. The aluminum frame features a 24 mm polyamide thermal break (2-chamber design), combined with double low-E glass (6-16-6 mm argon-filled). The wood-veneer layer does not degrade insulation, maintaining the same thermal efficiency as non-veneer models.

What is the impact resistance of these doors?

The frame uses aluminum alloy 6063-T5 with a wall thickness ≥2.0 mm. Glazing is 6 mm toughened or laminated safety glass. The WPC core absorbs impact energy, and the system passes EN 1627-16230 resistance tests up to class RC2. This withstands forced entry attempts with tools up to medium force.

How does the construction prevent long-term structural warping?

A cross-laminated LVL core (10–16 mm thick) is bonded to the aluminum frame using high-temperature vacuum pressing. The core’s dimensional stability is maintained up to 80% RH with a tangential swelling rate below 2%. Internal aluminum ribs (spacing ≤400 mm) further resist torsional deformation over decades.

What sound insulation performance can be expected?

Double glazing with acoustic PVB interlayer (4-12-4 mm) achieves a weighted sound reduction index (Rw) of 35–38 dB. The aluminum frame includes continuous EPDM gaskets and the thermal break acts as a vibration decoupler. This meets STC 35 rating, suitable for urban residential and office applications.

How is UV resistance ensured for the wood-veneer finish?

The veneer is coated with a two-component polyurethane clear coat (40–60 μm dry film thickness) that contains UV-absorbing additives. Tested per ISO 11507 for 1000 hours of accelerated weathering, the color change remains within ΔE ≤2.0. This prevents fading and cracking even in direct sunlight exposure.
